GTC 2026 Vera Rubin platform: 7 chips, 5 racks, what's new

Updated 2026-10-01 · Video: NVIDIA, published 2026-03-16

This page covers the hardware tour of the GTC 2026 keynote, from 1:07:56 to 1:20:00: a ten-year recap from DGX-1 to Blackwell, then the Vera Rubin rack, Vera CPU, NVLink 6, the co-packaged-optics Spectrum-X switch, BlueField-4 STX storage and a first physical look at Rubin Ultra in the Kyber rack. Watch it if you buy, plan or analyze data-center capacity. The economics that justify all this hardware sit in the next segment, covered in our Groq LPX and disaggregated inference notes.

Key takeaways

1. The unit of sale is now the AI factory, not the chip. Vera Rubin is pitched as seven chips and five rack types that NVIDIA designs together (1:11:12). That framing matters more than any single spec, because it is how NVIDIA argues against cheaper standalone accelerators.
2. Vera CPU becomes a product in its own right. Jensen describes a CPU built for single-thread speed and claims about 2x the performance per watt of other CPUs (1:16:09). He also says standalone CPU sales are already a multi-billion-dollar business. Neither number appears in NVIDIA’s press releases.
3. Assembly time is a selling point. The Vera Rubin rack is 100% liquid-cooled and cable-free inside the tray, which Jensen says cuts installation from two days to two hours (1:14:00). It runs on 45 °C warm water.
4. Optics enter the switch package. The Spectrum-X switch with co-packaged optics (CPO), built on TSMC’s COUPE process, is described as in full production (1:15:29).
5. Rubin Ultra changes the rack shape. The Kyber rack stands compute nodes vertically against a midplane and links 144 GPUs in one NVLink domain (1:17:58).

Chapter notes

1:07:56 – 1:10:04 Ten years from DGX-1 to Blackwell

The segment opens with a video recap. It starts with DGX-1 in April 2016: eight Pascal GPUs on first-generation NVLink at 170 teraflops. It then steps through the Volta NVLink Switch, the Mellanox acquisition and the A100 SuperPOD, Hopper’s FP8 Transformer Engine, and Blackwell NVL72 with 130 TB/s of all-to-all bandwidth across 72 GPUs.

The pattern is the point. Each generation added one more layer of the data center to what NVIDIA designs itself: first the board, then the GPU-to-GPU switch, then the network, and now storage and the CPU. If you want to know why NVIDIA keeps saying “extreme co-design”, this two-minute montage shows how it got there. The recap closes with a claim of a 40-million-fold increase in compute over ten years (1:11:20). Treat that as a marketing number: it compares a 2016 single box with a 2026 multi-rack system, so it mixes per-chip gains with scale-out gains.

1:10:04 – 1:11:36 The Vera Rubin platform in one slide

The video describes Vera Rubin NVL72 at 3.6 exaflops with 260 TB/s of NVLink all-to-all bandwidth. NVIDIA’s official materials confirm the 260 TB/s figure (3.6 TB/s per GPU) and 50 PFLOPS of NVFP4 inference per Rubin GPU. Seventy-two of those works out to the quoted 3.6 exaflops, so that number is an NVFP4 inference figure, not general-purpose FP64 compute.

Around the GPU rack sit four more rack types:

• a Vera CPU rack for orchestration and agent workloads;
• the STX storage rack built on BlueField-4;
• Spectrum-X Ethernet with co-packaged optics for scale-out;
• the new Groq 3 LPX rack, which joins the platform as a token accelerator.

The official release lists the same five racks and calls them all in full production.

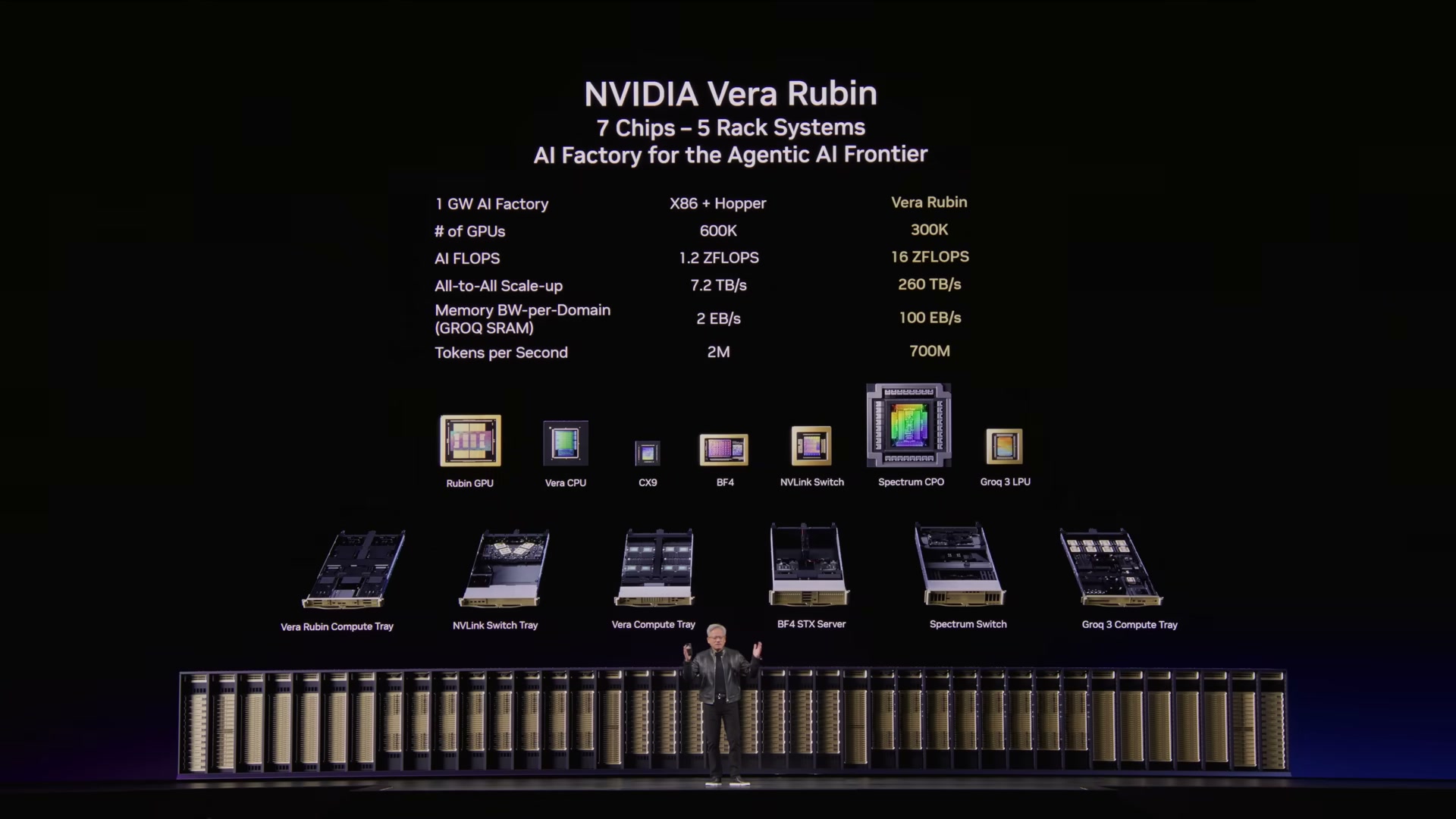

The slide above is the best reference for the platform, even though it appears a few minutes after this segment ends. Read the table carefully. Halving the GPU count while multiplying AI FLOPS by about 13x tells you most of the gain is per-GPU and in low-precision formats. The “Memory BW-per-Domain” row explicitly counts Groq SRAM, so the 100 EB/s figure only applies to a factory that includes LPX racks.

1:11:36 – 1:14:43 Why agents need a different system

Jensen’s argument for redesigning the whole rack, not just the GPU, is about agents. An agent does three things: it thinks (LLM inference), it remembers (KV cache, structured data through cuDF, vector search through cuVS), and it calls tools (browsers and virtual machines in the cloud). Each of those hits a different part of the system. Thinking is GPU-bound, memory is storage-bound, and tool calls are CPU-bound and latency-sensitive.

That is the justification for the Vera CPU. Jensen describes it as built for single-thread performance, the only data-center CPU using LPDDR5 memory, with high performance per watt. NVIDIA’s Vera release gives 88 custom Olympus cores, up to 1.2 TB/s of LPDDR5X bandwidth and 1.8 TB/s of NVLink-C2C to the GPU. The practical reading is simple: when an AI agent waits on a slow CPU, the expensive GPU sits idle, so NVIDIA wants to own that part too.

The physical rack demo at 1:14:00 is more interesting for operators than for investors. Moving from two days to two hours of installation per rack, if real at scale, shortens the time between delivery and revenue. Warm-water cooling at 45 °C means less power spent on chillers, which in a power-capped site turns directly into more power for compute.

1:14:43 – 1:17:39 NVLink 6, Groq LP30, CPO Spectrum-X, Vera, BlueField-4

This is a rapid walk past hardware on stage:

• NVLink 6 switch (1:14:46): the sixth-generation scale-up fabric. Jensen stresses that it is neither Ethernet nor InfiniBand. It is the part competitors find hardest to copy.
• Groq system (1:15:07): eight Groq chips per tray, described as the third-generation LP30. The full story comes later in the keynote.
• CPO Spectrum-X (1:15:29): optical engines sit on the switch package, so signals turn into light right next to the silicon. NVIDIA’s release claims up to 5x better optical power efficiency and 10x higher resiliency than pluggable transceivers.
• Vera CPU (1:16:09): the 2x performance-per-watt claim, plus the remark that NVIDIA never planned to sell CPUs on their own.
• BlueField-4 STX (1:16:36): ConnectX-9 plus Vera, forming the new storage platform. NVIDIA’s release says it can lift inference throughput by up to 5x by keeping KV cache close to the GPUs.

Jensen also shows a 256-node liquid-cooled Ethernet rack using the same structured-cabling approach as the NVLink rack (1:17:21). The takeaway: NVIDIA is taking rack mechanics it built for NVLink and reusing them across networking.

1:17:39 – 1:20:00 Rubin Ultra and the Kyber rack

Rubin Ultra is the one genuinely new physical object in this segment. Standard Rubin compute trays slide into the Oberon rack horizontally. Rubin Ultra nodes stand vertically in the new Kyber rack and plug into a midplane, with NVLink switches mounted on the back side. One Kyber rack links 144 GPUs in a single NVLink domain.

Why it matters: a bigger NVLink domain lets a single model instance spread across more GPUs without going over the slower scale-out network. That is what very large mixture-of-experts models need. The trade-off is a new rack form factor that data centers must plan for, which is why NVIDIA keeps Oberon available for buyers who do not want to change anything (see the roadmap notes).

What changed since GTC 2025

At GTC 2025 (March 18, 2025), Vera Rubin was a roadmap item. NVIDIA’s live blog said Vera Rubin systems would arrive in the second half of 2026 and Rubin Ultra systems in the second half of 2027. It also introduced the Kyber rack design as part of the Rubin Ultra plan.

Two items stand out. First, the schedule held: what was promised for the second half of 2026 was in production by March 2026. Second, the scope grew. The Groq LPU and the standalone Vera CPU rack were not part of last year’s Vera Rubin story.

Sources: GTC 2025 live updates, Vera Rubin Opens Agentic AI Frontier, Rubin launch at CES 2026.

Skip list

• 1:07:56 – 1:10:04 History montage. Skip it if you know the DGX lineage; the useful facts are in the notes above.
• 1:11:36 – 1:11:56 Jensen jokes about holding up a single Hopper chip. No information.
• 1:17:00 – 1:17:20 Banter about the NVLink rack getting heavier every year.
• 1:18:19 – 1:18:28 Jensen declines to lift the Kyber rack. Skip.

Glossary

• NVL72 — a rack with 72 GPU packages linked by NVLink so they behave like one large GPU.
• NVLink 6 — NVIDIA’s sixth-generation GPU-to-GPU scale-up link, 3.6 TB/s per GPU on Rubin.
• Co-packaged optics (CPO) — optical transceivers built into the switch package instead of plugged in at the front panel; it saves power and improves reliability.
• Kyber — the new rack for Rubin Ultra; nodes stand vertically and connect through a midplane, with 144 GPUs per NVLink domain.
• BlueField-4 STX — NVIDIA’s storage rack built on the BlueField-4 DPU, aimed at serving KV cache and data to agents.
• Oberon — the existing NVL72 rack design used by Blackwell and standard Rubin.
